LAUNCH X431 CRP909E Professional Full System Car Scan Tool TPMS DPF IMMO 15 Reset OBDII OBD2 Scanner CRP909

: Sold out

Regular price $989.00 NZD

LAUNCH X431 CRP909E car diagnostic tool TPMS DPF IMMO 15 Reset OBDII OBD2 Code Reader Scanner CRP909  Unleash your potential - Fix...


QUESTIONS & ANSWERS

Have a Question?

Be the first to ask a question about this.

Ask a Question
files/IMG_0840_copy_09d20018-bf2a-4d66-9c62-1b3ea5f3ec5a.gif

LAUNCH X431 CRP909E car diagnostic tool TPMS DPF IMMO 15 Reset OBDII OBD2 Code Reader Scanner CRP909  Unleash your potential - Fix more - Help more - Earn more!
LAUNCH X431 CRP909E Professional Full System Diagnostic Scan Tool with 15 reset service
Technical Parameters:
Operating System:Android 7.1
Processor:Powerful Quad-Core Processor
RAM: 1GB ROM: 16GB
Display: 7 inch IPS touch screen
Connectivity:Mini USB 2.0, Wi-Fi
Battery: 6000mAh lithium-polymer battery
Battery Life:more than 8 hours Product Size:9.8x5.5x1.5(inch) Product Net Weight: 700g
LAUNCH X431 CRP909E Package List:
1 * CRP909 Android Tablet 1 * OBD-II Diagnostic Cable 1 * DC Power Charging Cable 1 * User Manual 1
1. CRP909E support all ECU diagnostics, including ABS system , DPF system ,TMPS system , EPB system , ect
2.CRP909E support 15 special functions
3.CRP909E offer Free Software with 1 year free update
4.Big Size: 7inch android touch screen ,support touch &keypad input

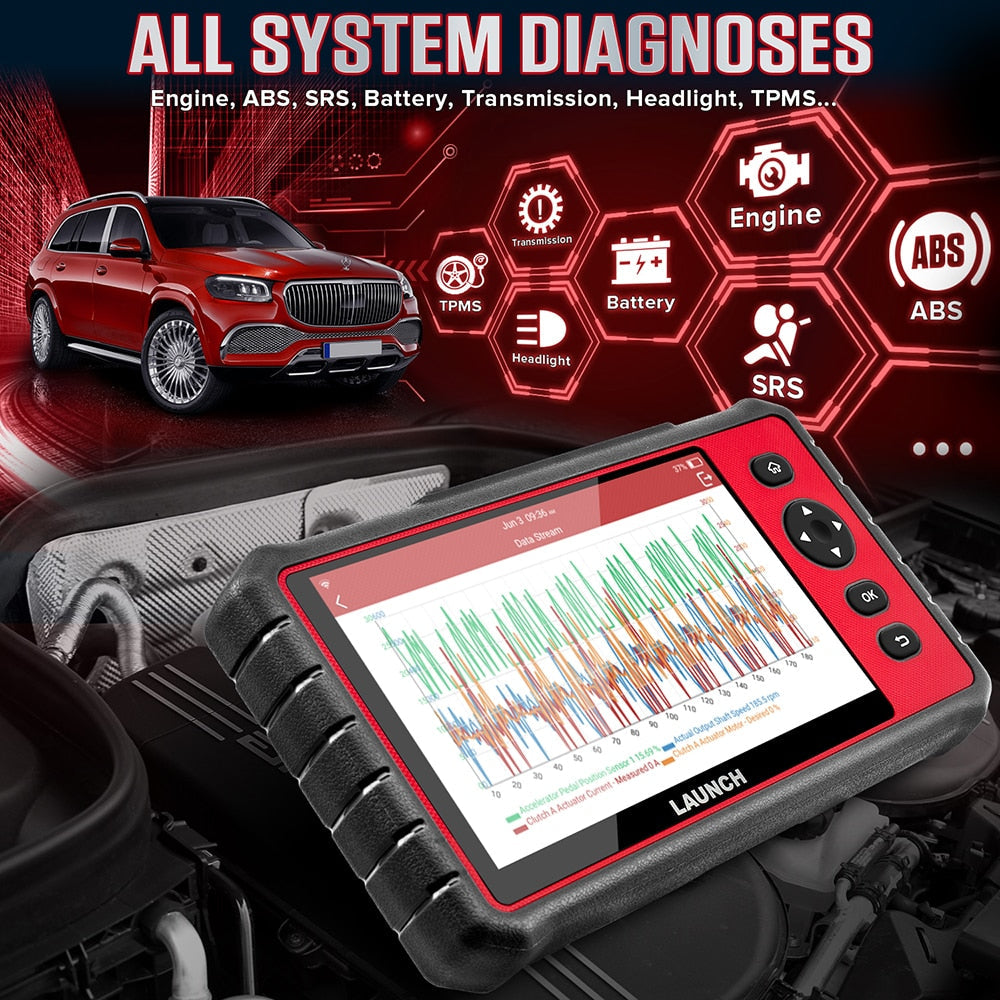

Launch X431 CRP909E Support Diagnose Car Full System Diagnosis
This option allows you to detect whether the car full system parameters are normal or not. It mainly including
ABS system, Engine system, SAS system , TPMS system , IMMO system , Battery system ,Oil service system, SRS system , ect
1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more...
2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more...
3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more...
4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system
LAUNCH CRP909E Support Below 15 Kinds Maintenance Functions
1.Oil Lamp Reset Service:
Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.
2.EPB Electronic Park Brake Reset:
It is important in the maintenance of electronic braking system's safety and efficiency.
3.BAT battery service :
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
4.DPF Diesel Particulate Filter Reset :
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
5.SAS Steering Angel Sensor Reset:
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.
6.TPMS Tire Pressure Monitoring System Reset:
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
7.IMMO Reset :
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.
8.ABS Bleeding:
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.
9.Sunroof Reset:
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.
10.Suspension Reset :
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.
11.Gearbox (Transmission )Reset:
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.
12.AFS Headlamp Reset :
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.
13.Injector Coding :
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.
14.Throttle Adaptation :
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.
15.Gear Learning :
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running
Note: These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.

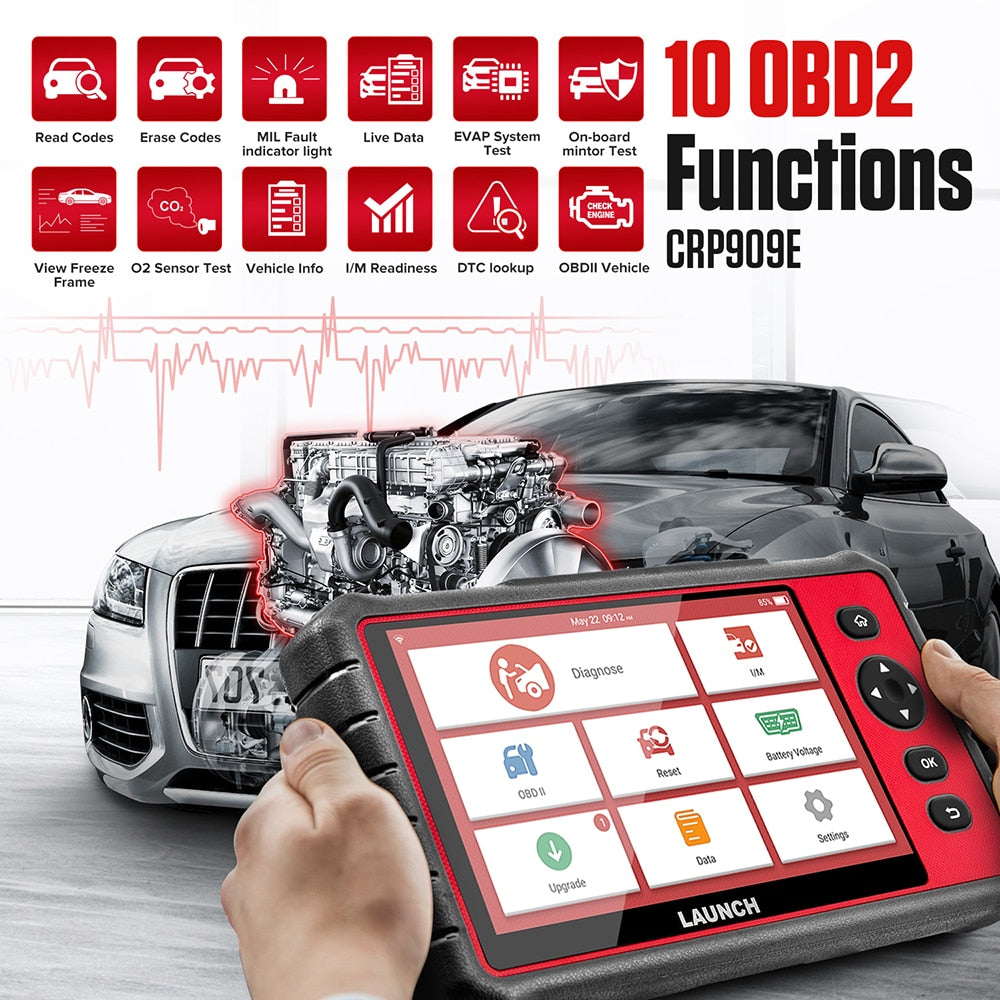

Full 10 Mode OBDII/EOBD/JOBD Car Diagnostics Functions:
This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:
1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display. 6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
Professional Fast Identifies VIN Number:
Once connect with car OBD2 port , tool will AutoDetect car Vin number. Give you a quick access to start the vehicle system detection.

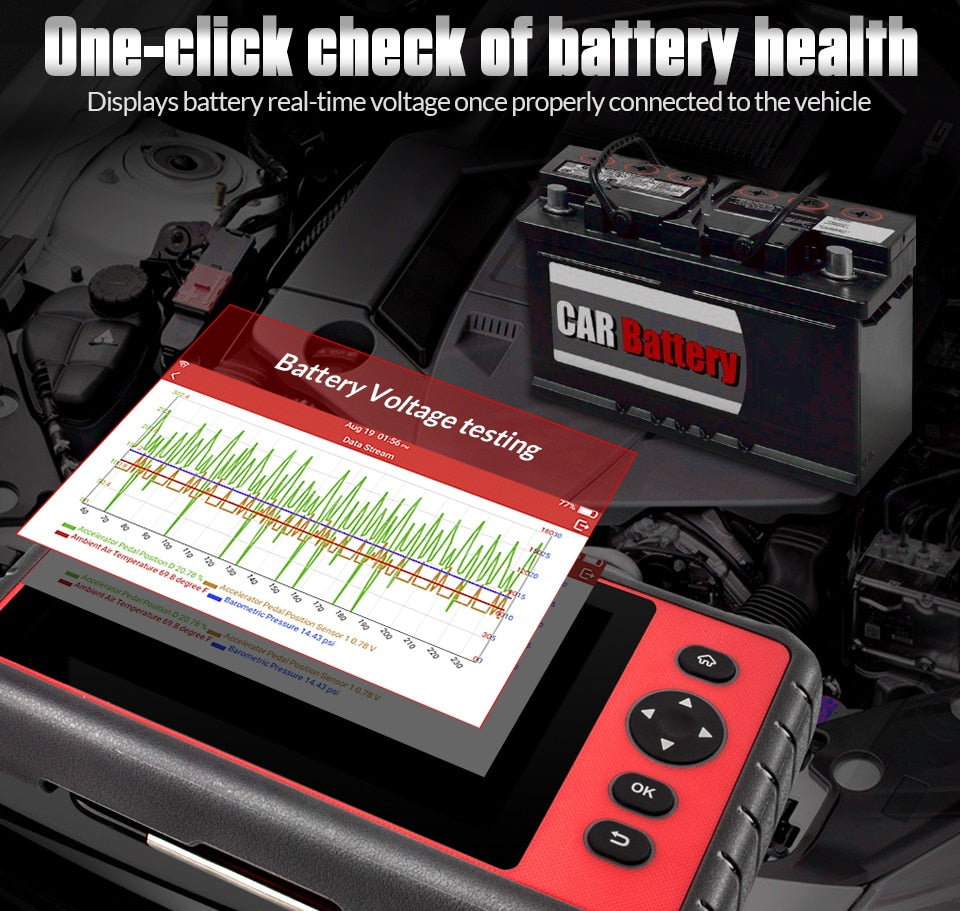

Perfect Performs Vehicle Battery Analysis
For 12V car, SUV, Van, Light Truck, Pickup. Detect real-time data from 12V batteries and display BATTERY DATA with fluctuations ranging from 8V to 16V. The discharge voltage of a normal battery is about 12V, the starting voltage is generally 12V, and the charging voltage is about 14V.
Other Feature of LAUNCH X431 CRP909E
1.DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.
2.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and the report can be saved offline. 3.Diagnose Report Share & Printed: you can share the diagnose report to your email ,then printed via computer.
